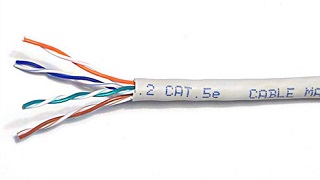

Data Cable CAT 5E

Hive Networks is one of the renowned manufacturers and suppliers of CAT 5E cables in India. We have skilled workforce in our Manesar plant who takes care of quality of product. These wires go through various testing and measuring steps just to insure excellent quality.

Parameter Data SFTP FTP UTP
Conductor 24 AWG Annealed Bare Solid copper O O O
Insulation 1 mm Nom. High Density Polythene O O O
Pairs Blue/white - Blue, Orange / White - Orange O O O
Green / White - Green, Brown / White - Brown O O O
Laying 4 Pair laid together O O O
Binding Polyester Tape O O X
Shield Aluminium Bonded Polyester Tape O O X
Braiding and Coverage 0.1 mm Nom. more than 60% O X X
Drain Wire 26 AWG Tinned Copper O O X
Sheathing (External Jacket) FR PVC for Indoor / PE for Outdoor O O O
Jacket Dia In mm Nominal 6.5 6 5.5
Vertical Flame Spread of single cable As per IEC 60332-1 O O O
Vertical Flame Spread of Bunched Cables As per IEC 60332- 3 -24 Category C0 O O O
Amount of Halogen acid gas As per IEC 60754-1 20 Mg/g max0 O O O
Corrosivity of Combustion Gases As per IEC 60754-2 O O O
Smoke Density As per IEC 61034-2 less than 60% SDR O O O
Conductor Resistance at 20°C 94 O / km Max. O O O
Insulation Resistance at 20°C = 5 MO / Km. O O O
High Voltage Test 1500 V for 1 Min. Withstood O O O
Capacitance 53 +/- 5nf /km O O O
Impedance 100 ± 15 O 0 0 0
Frequency in MHz Attenuation In dB per 100 meter cable
1 2.2 2.2 2
Attenuation 10 6.7 6.7 6.5
20 9.3 9.3 9.3
100 22 22 22
Frequency in MHz NEXT In dB
1 65.3 65.3 65.3
Next 10 50.3 50.3 50.3
20 45.8 45.8 45.8
100 35.3 35.3 35.3
Cable Printing SPEEDLINK

24 AWG 4 Pair Category 5e SFTP Cable

 SPEEDLINK

24 AWG 4 Pair Category 5e FTP Cable

 SPEEDLINK

24 AWG 4 Pair Category 5e UTP Cable

Packing 500/305/100 meter O O O

Note: "O" indicates available and "X" indicates not available.

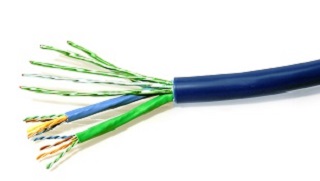

Data Cable CAT 6

Hive Networks is one of the renowned manufacturers and suppliers of CAT 6 cables in India. We have skilled workforce in our Manesar plant who takes care of quality of product. These wires go through various testing and measuring steps just to insure excellent quality.

Parameter Data SFTP FTP UTP
Conductor 23 AWG Annealed Bare Solid copper O O O
Insulation 1 mm Nom. High Density Polythene O O O
Pairs Blue/white - Blue, Orange / White - Orange O O O
Green / White - Green, Brown / White - Brown O O O
Laying 4 Pair laid together O O O
Binding Polyester Tape O O X
Shield Aluminium Bonded Polyester Tape O O X
Braiding and Coverage 0.1 mm Nom. more than 60% O X X
Drain Wire 26 AWG Tinned Copper O O X
Sheathing (External Jacket) FR PVC for Indoor / PE for Outdoor O O O
Jacket Dia In mm Nominal 7 6.5 6
Vertical Flame Spread of single cable As per IEC 60332-1 O O O
Vertical Flame Spread of Bunched Cables As per IEC 60332- 3 -24 Category C O O O
Amount of Halogen acid gas As per IEC 60754-1 20 Mg/g max O O O
Corrosivity of Combustion Gases As per IEC 60754-2 O O O
Smoke Density As per IEC 61034-2 less than 60% SDR O O O
Conductor Resistance at 20°C 76 O / km Max. O O O
Insulation Resistance at 20°C = 5 MO / Km. O O O
High Voltage Test 1500 V for 1 Min. Withstood O O O
Capacitance 53 +/- 5nf /km O O O
Impedance 100 ± 15 O O O O
Frequency in MHz Attenuation In dB per 100 meter cable
1 2 2 1.9
10 6.7 6 6
20 9.3 8.5 8.5
Attenuation 100 22 19 19
150 24.7 24.7 24.7
200 29 29 29
250 32 32 32
300 35.6 35.6 35.6
Frequency in MHz NEXT In dB
1 74.3 74.3 74.3
10 59.3 59.3 59.3
20 54.8 54.8 54.8
Next 100 44.3 44.3 44.3
150 41.744. 41.744. 41.744.
200 39 39 39
250 37 37 37
300 35.3 35.3 35.3
Cable Printing SPEEDLINK

24 AWG 4 Pair Category 6 SFTP Cable

 SPEEDLINK

24 AWG 4 Pair Category 6 FTP Cable

 SPEEDLINK

2OO4 AWG 4 Pair Category 6 UTP Cable

Packing 500/305/100 meter O O O

Note: "O" indicates available and "X" indicates not available.
