Flexible Cable
HIVE FR-PVC WIRES UPTO 1100V
- India´s leading manufacturer of Flame Retardant PVC Cables.
- Greater current-carrying capacity offers economy of wire-gauge.
- Higher Short term and long term temperature rating.
- No overheating or melting.
- Steam & boiling water resistant.
- Total lead free cable for better tomorrow.
- Online diameter control.
- In house compounding for consistent quality.
| Conductor Area Sq. mm. | Insulation Thickness | Number Nominal Dia. of Conductor | Max. Overall Diameter mm. | Conductor Resistance ohm/Km at 20° C Max. | Casting | Concealed |
|---|---|---|---|---|---|---|
| 1.00 | 0.6 | 14/0.3 | 3.2 | 18.1 | 14 | 13 |
| 1.50 | 0.7 | 22/0.3 | 3.4 | 12.1 | 18 | 16 |
| 2.50 | 0.8 | 36/03 | 4.2 | 7.41 | 24 | 20 |
| 4.00 | 0.8 | 56/0.3 | 4.8 | 4.95 | 32 | 26 |
| 6.00 | 0.8 | 84/0.3 | 5.6 | 3.30 | 42 | 35 |
FLEXIBLE WIRES IN FRLS & ZHLS
Hive FRLS Housewire upto 1100V
- Special Flame Retardant low smoke insulation.
- Does not Propagate Flame.
- High Safety Factor.
- High Current Ratings.
- High Temperature Ratings.
Application
Suitable for use in conduit and for fixed protected insulation, suitable for wiring in fire and explosion prone area like Schools, Hospitals, Labs etc.
Specification
Conforms to IS-694, IS-10810, IEC-60332-1, BS-4066-1, IS-8130 & IS-5831
| Conductor Area Sq. mm. | Insulation Thickness | Number Nominal Dia. of Conductor | Max. Overall Diameter mm. | Conductor Resistance ohm/Km at 20° C Max. | Casting | Concealed |
|---|---|---|---|---|---|---|
| 1.00 | 0.6 | 14/0.3 | 3.2 | 18.1 | 14 | 13 |
| 1.50 | 0.7 | 22/0.3 | 3.4 | 12.1 | 18 | 16 |
| 2.50 | 0.8 | 36/03 | 4.2 | 7.41 | 24 | 20 |
| 4.00 | 0.8 | 56/0.3 | 4.8 | 4.95 | 32 | 26 |
| 6.00 | 0.8 | 84/0.3 | 5.6 | 3.30 | 42 | 35 |
Hive ZHLS Wires upto 1100V
- Fire Safe Cable ZHLS insulation.
- Non Toxic, Non Corrosive.
- Zero Halogen Insulation.
- Does not propagate fire.
Application
Suitable for all installations where fire safety is more important, Air condition apartments, and emergency lighting circuits.
Specification
Conforms to IS -694, IEC-60332-1 & 3, IS-10810 & BS-7211.
| Conductor Area Sq. mm. | Insulation Thickness | Number Nominal Dia. of Conductor | Max. Overall Diameter mm. | Conductor Resistance ohm/Km at 20° C Max. | Casting | Concealed |
|---|---|---|---|---|---|---|
| 1.00 | 0.6 | 14/0.3 | 3.2 | 18.1 | 14 | 13 |
| 1.50 | 0.7 | 22/0.3 | 3.4 | 12.1 | 18 | 16 |
| 2.50 | 0.8 | 36/03 | 4.2 | 7.41 | 24 | 20 |
| 4.00 | 0.8 | 56/0.3 | 4.8 | 4.95 | 32 | 26 |
| 6.00 | 0.8 | 84/0.3 | 5.6 | 3.30 | 42 | 35 |

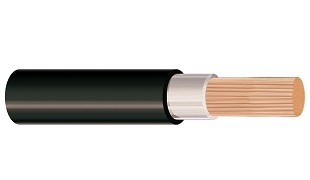

Single Core Flexible Cable
Conductor: Plain annealed copper conductor as per IS:8130
Insulation: Primary - Natural Type A PVC.
Secondary - Skin colour coated PVC (25 sq. mm & above are provided with unicolour Insulation only).
Colour: Red/Yellow/Blue/Black/Green. Any other colour on specific request can also be supplied.
Packing: 100 mtr. coil.
| Nominal Cross sectional area of | Number/Nom. dia of cond. | Thickness of insulation (nom ) | Approx. overall diameter | Current carrying capacity 2 cables single phase unenclosed clipped directly to a surface | Max. conductor resistance per KM at 20°C |
|---|---|---|---|---|---|
| sq. mm. | mm. | mm. | mm. | Amps. | Ohms |
| 0.5 | 16/0.2 | 0.6 | 2.2 | 6 | 39.00 |
| 0.75 | 24/0.2 | 0.7 | 2.5 | 10 | 26.00 |
| 1.0 | 32/0.2 | 0.7 | 2.8 | 14 | 18.10 |
| 1.5 | 30/0.25 | 0.7 | 3.1 | 19 | 12.10 |
| 2.5 | 50/0.25 | 0.8 | 3.8 | 26 | 7.41 |
| 4.0 | 56/0.3 | 0.8 | 4.4 | 35 | 4.95 |
| 6.0 | 84/0.3 | 0.8 | 5.0 | 44 | 3.30 |
| 10 | 80/0.4 | 1.0 | 6.6 | 61 | 1.91 |
| 16 | 126/0.4 | 1.0 | 7.8 | 82 | 1.21 |
| 25 | 196/0.4 | 1.2 | 9.7 | 103 | 0.780 |
| 35 | 276/0.4 | 1.2 | 10.9 | 132 | 0.554 |
| 50 | 396/0.4 | 1.4 | 13.2 | 174 | 0.386 |
| 70 | 360/0.5 | 1.8 | 16.15 | 256 | 0.272 |
| 95 | 475/0.5 | 1.9 | 18.75 | 304 | 0.206 |
| 120 | 608/0.5 | 2.10 | 21.25 | 359 | 0.161 |
| 150 | 750/0.5 | 2.10 | 22.25 | 406 | 0.129 |
| 185 | 925/0.5 | 2.50 | 25.50 | 466 | 0.106 |
| 240 | 1221/0.5 | 2.50 | 28.50 | 550 | 0.0801 |
